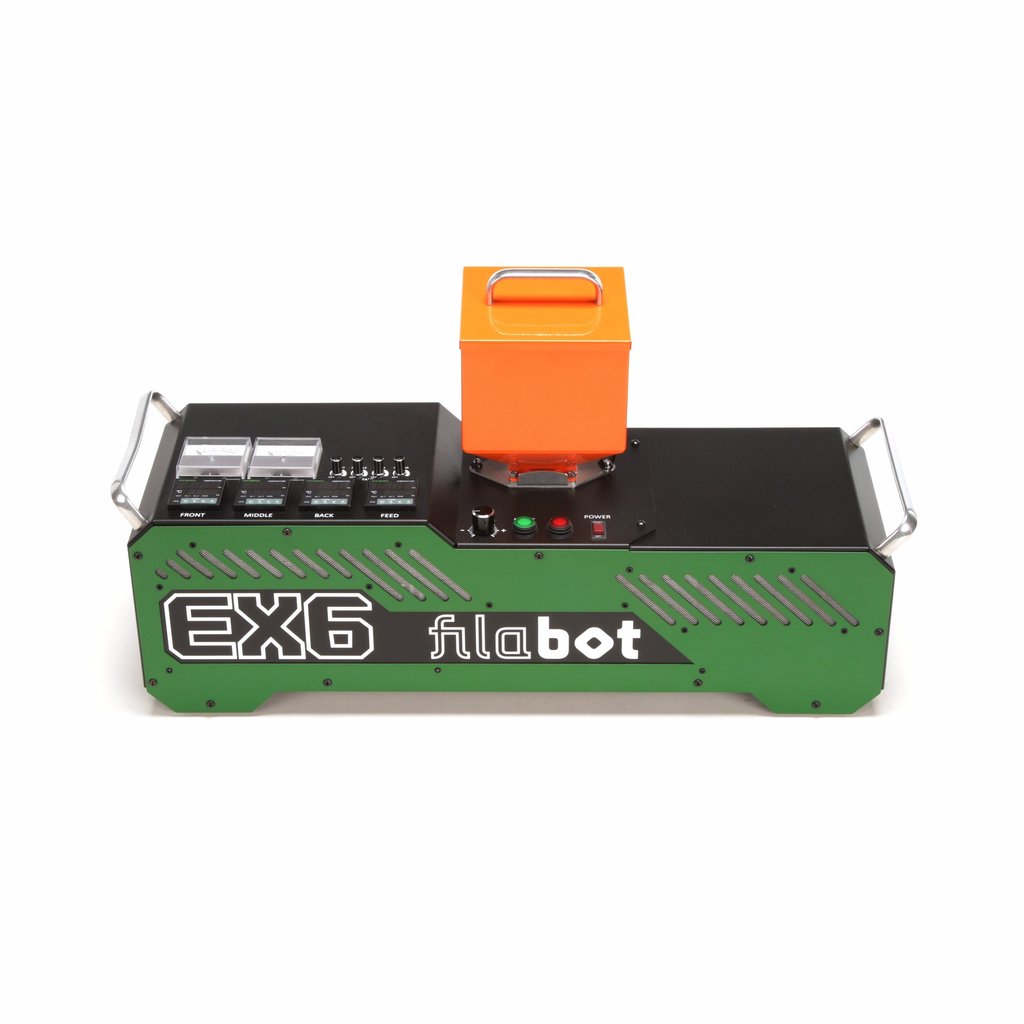

Filabot EX6 Filament Extruder


The Filabot EX6 Extruder is a polymer extruder designed to bring many common features from large-scale production extruders to small-scale filament production, and laboratory research equipment. This system has been completely designed for research and development laboratories, creating a device that excels as both test equipment and production equipment.

Multiple heat zones allow for custom heat profiles to match the correct melting profile of any polymer. The EX6 features a removable screw that can be accessed without having to open the machine, which also allows easy cleaning.

With this new system, screws with different characteristics can be used as needed for each specific polymer, allowing screw designs to be tested and polymer output and consistency optimized. All screws have a 24:1 L/D ratio giving greater versatility and control compared to other extruders.

The Filabot EX6 comes with a full one-year warranty on all parts.


Extrudable Plastics: ABS, ABS Flame Retardant, 4043D PLA, 3D850 PLA, 3D870 PLA, PC, HIPS, PP, PS, ULTEM, PEEK, NYLON, HDPE, PETG, and WAX. Low to Higher Melt Flow Polymers

Extrusion Rate: Over 10 pounds per hour

Filament Sizes: 1.75 and 2.85mm

Material Input Size: 1/8th of an inch pellets to powder

Material Capacity: Hopper - 195 cubic in
Screw Void - 2.37cubic in
Feed Port - 195 cubic in

Temperature Control: 4 Independently PID controlled heat zones, all with active fan cooling for consistent heating

Feed Screw and Drive:

0-100rpm Speed Control

24:1 L:D ratio screw

Removable and upgradable screw

17-4 PH Stainless Steel and Hardened to Condition H900

Universal Power Input: 110 VAC or 220 VAC - 50 to 60hz - 1550 watts

Physical Characteristics: Weight 50lbs (23kg) and dimensions of 29.7in x 9.1in x 8.4in

Full 1 Year Warranty
