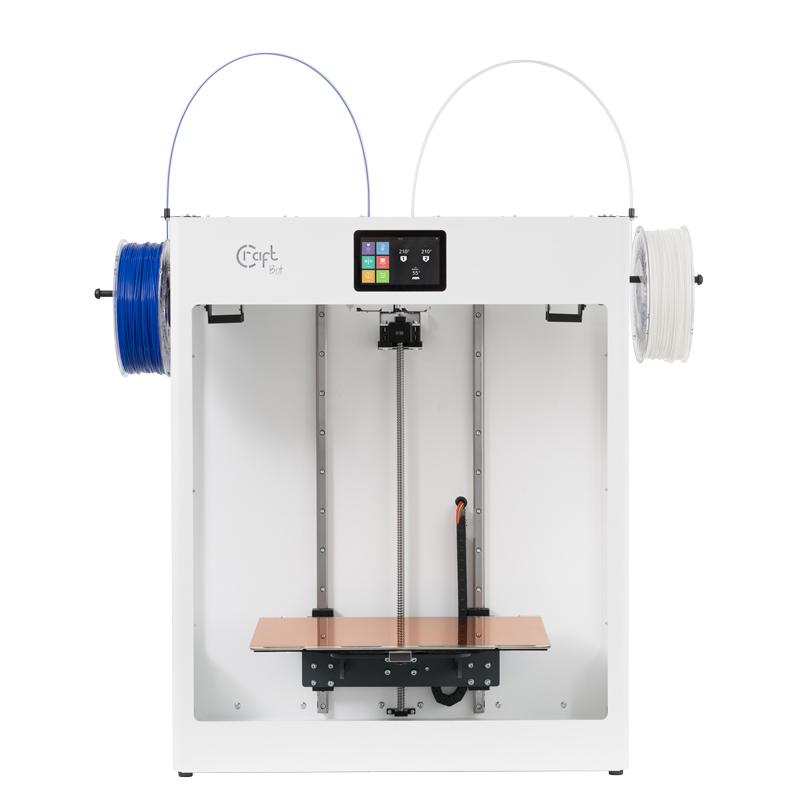

CraftBot FLOW IDEX XL 3D Printer

$6,399.00

The CraftBot FLOW IDEX XL 3D Printer is a wide and tall double extruder printer that can double your performance. Much wider and deeper than the FLOW XL, the CraftBot FLOW IDEX XL is equipped with Independent Dual EXtruders. It is currently the largest Plug-n-Play Dual Extruder Desktop 3D Printer in the World!

The CraftBot FLOW IDEX XL comes with a 5 Years or 5000 Hours Warranty!

KEY FEATURES are inspired by you the users:

EFFECTIVITY

INDEPENDENT DUAL EXTRUDER: Our IDEX printers with their huge print volume and high quality independent dual extruders are able to print two objects in the same time (mirror or parallel mode) as well as PVA printing.

HUGE PRINT VOLUME – the CraftBot Flow IDEX XL is THE BIGGEST IDEX PRINTER OF THE WORLD.

UNIQUE DESIGNED PRINTING BED

- FOR THE STRONG ADHESION & EASY REMOVAL:

The heated bed comprises of metal, tempered glass, and Kapton this ensures the maximum adhesion during printing, while the flexible top plate makes the removal easy even in the case of very flat objects.

MESH BED LEVELING - SIMPLIFY THE

CALIBRATION PROCESS: Beside the automatic XY calibration we have built in a semi-automatic, electronically aided Z calibration as well into our IDEX printers.

RELIABILITY

REINFORCED STEEL FRAME - MAKES CRAFTBOTS

“TANK” : reinforced double-shell structure and robust extruded aluminium profiles along the Z axis.

NEW FILAMENT MONITORING SENSOR - for the smooth operation

ALL-METAL HOTEND: Exeptional quality printings and less filament jam.


HIGH - TECHNOLOGY

NEW PR3DATOR MOTHERBOARD

  • FOR THE MAXIMUM SPEED: 32 Bit fast for more accurate and precise Our mainboard is equipped the industry leading motor control system, extended features and great interface connections.

RASPBERRY PI IS THE ENGINE OF HMI

  • ENABLES MORE FLEXIBLE DEVELOPMENTS:

A brand new microcomputer which supports your effective working time. Ultra-fast response times, unified user interface, stable Linux operating system in a modern, hi-tech design, future-proof execution. 4GB internal storage.

WEB INTERFACE, IOT - FOR THE INDUSTRY 4.0

COMPATIBILITY: Each printer has its own responsive interface with a simple control option connected to the owner PC via a secure intranet connection. In addition the built-in camera facilitates working processes. The platform- independent access, the programmable API, the fine- tuning CraftWare software and compatibility with even a heterogeneous printer farm bring you a totally personalized option to control your work.

5” COLOR TOUCH SCREEN - for the innovative design

LED STATUS INDICATOR - maximize the user experience

With all of the exciting new features Flow Generation still holds true to our original values:

  • Great value for money
  • Plug ‘n’ Play
  • The Tank
  • Print pause & resume
  • Printing accuracy
  • Colour LCD touchscreen
  • CraftWare
  • Heatable build platform

SPECFICATIONS

PRINTING
Technology: Fused Filament Fabrication (FFF)
Layer: resolution 50 micron
Position precision: XYZ accuracy: 12.5x12.5x5 micron
Filament diameter: 1.75 mm
Filament types: PLA, ABS, HIPS, PET, Nylon, etc.
Nozzle: 0.4 mm
Print speed: up to 200 mm/s
Power consumption: max. 500 W

TEMPERATURE
Ambient temperature: 5 - 40 °C
Storage temperature: 0 - 50 °C
Operating nozzle temperature: 180 - 300 °C
Operating heated build plate temperature: 30 - 110 °C

SOFTWARE
Software package: CraftWare
File types: OBJ, STL

COLOUR
White

PHYSICAL DIMENSION

Build voulme: 420 x 250 x 500 mm - 16.7 x 9.8 x 19.7”

Frame dimension: 635 x 450 x 790 mm - 25 x 17.7 x 31.1”

Shipping weight (net. weight): 53 kg (38 kg)

Shipping box size: 760 x 560 x 985 mm - 30 x 22 x 38”

For a perfect user experience, we provide an unique maintenance – and nozzle kit for our Craftbot printers.
