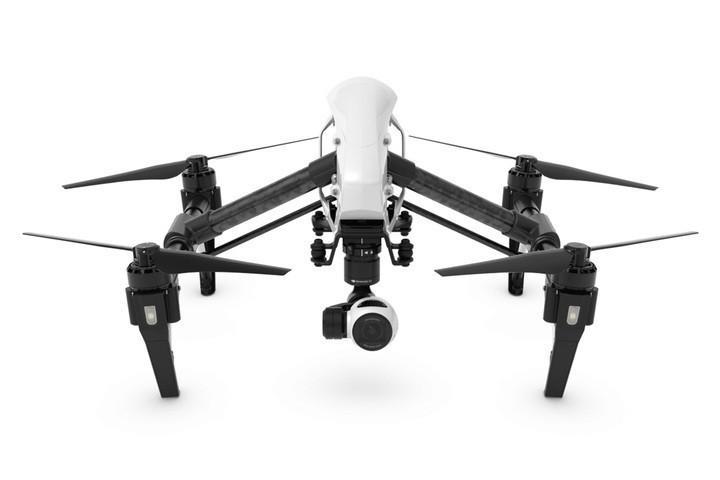

DJI Inspire 1 V2.0 Quadcopter Drone - 4K 3-axis

AIRCRAFT:

Model
T600

Hovering Accuracy (GPS Mode)
Vertical: 0.5m
Horizontal: 2.5m

Max Angular Velocity
Pitch: 300 Degrees
Yaw: 150 Degrees

Max Tilt Angle
35 Degrees

Max Ascent Speed
5 m/s

Max Descent Speed
4 m/s

Max Flight Altitude
4500m

Max Wind Speed Resistance
10 m/s

Max Flight Time
Approximately 18 Minutes

Max Wind Speed Resistance
10 m/s

Max Flight Time
Approximately 18 Minutes

Motor Model
DJI 3510H

Propeller Model
DJI 1345T

Indoor Hovering
Enabled by Default

Operating Temperature Range
-10 to 40^o C

Diagonal Distance
559 to 581mm

Power Spectral Density
9.06mW/MHz

GIMBAL:

Model
ZENMUSE X3

Operating Current
Station: 750 mA
Motion: 900mA

Angular Vibration Range
+/-0.03 Degrees

Mounting
Detachable

Controllable Range
Pitch: -90 Degrees to +30 Degrees
Pan: +/-320 Degrees

Mechanical Range
Pitch: -125 Degrees to +45 Degrees
Pan: +/-330 Degrees

Max Controllable Speed
Pitch: 120 Degrees
Pan: 180 Degrees

CAMERA:

Name
X3

Model
FC350

Total Pixels
12.76M

Effective Pixels
12.4M

Image Max Size
4000x3000

ISO Range
100 to 3200 (Video)
100 to 1600 (Photo)

Electronic Shutter Speed
8S to 1/8000x

FOV (Field of View)
94 Degrees

CMOS
Sony EXMOR 1/2.3inch

Lens
20mm (35mm format equivalent) f/2.8 focus at infin
9 Elements in 9 groups
Anti-distortion

Still Photography Modes
Single Shoot
Burst Shooting: 3/5/7 frames
Auto Exposure Bracketing (AEB): 3/5 Bracketed frames at 0.7EV Bias
Time Lapse

Video Resolution Modes
UHD (4K): 4096x2160p24/25, 3840x2160p24/25/30
FHD: 1920x1080p24/25/30/48/50/60
HD: 1280x720p24/25/30/48/50/60

Max Bitrate of Video Storage
60 Mbps

Supported File Formats
FAT32/exFAT
Photo: JPEG, DNG
Video: MP4/MOV (MPEG-4 AVC/H.264)

Supported SD Card Types
MicroSD
Max Capacity: 64GB Class 10 or UHS-1 Rating Required

Operating Temperature Range
0^o to 40^o C

REMOTE CONTROLLER:

Name
C1

Operating Frequency
922.7 to 927.7 MHz (Japan Only)
5.725 to 5.825 GHz
2.400 to 2.483 GHz

Maximum Transmitting Distance
Up to 5 km or 3.1 miles (unobstructed, free of interference) when FCC compliant
Up to 3.5 km or 2.1 miles (unobstructed, free of interference) when CE compliant

EIRP
10dBm at 900m, 13dBm at 5.8G, 20dBm at 2.4G

Video Output Port
USB, Mini-HDMI

Power Supply
Built-in Battery

Charging
DJI Charger

Dual User Capacity
Host-and-Slave Connection

Mobile Device Holder
Tablet or Phone

Max Mobile Device Width
170mm

Output Power
9W

Operating Temperature Range
-10^o C to 40^o C
Storage Temperature Range
Less than 3 Months: -20^o C to 45^o C
More than 3 Months: 22^o C to 28^o C

Charging Temperature Range:
0 to 40^o C
Battery
6000 mAh LiPo 25

CHARGER:

Model
A14-100P1A

Voltage
26.3V

Rated Power
100W

Battery (Standard)

Name
Intelligent Flight Battery

Model
TB47

Capacity
4500 mAh

Voltage
22.2V

Battery Type
LiPo 6S High Voltage Battery

Energy
99.9Wh

Operating Temperature Range
-10^o C to 40^o C

Storage Temperature Range
Less than 3 Months: -20^o to 45^o C
More than 3 Months: 22^o C to 28^o C

Charging Temperature Range
0^o to 40^o C

Max Charging Power
180W

Battery (Optional)

Name
Intelligent Flight Battery

Model:
TB48

Capacity
5700 mAh

Voltage
22.8V

Battery Type
LiPo 65

Energy
129.96Wh

Operating Temperature Range
-10^o C to 40^o C

Storage Temperature Range
Less than 3 Months: -20^o to 45^o C
More than 3 Months: 22^o C to 28^o C

Charging Temperature Range
0^o C to 40^o C

Max Charging Power
180W

VISION POSITIONING:

Velocity Range
Below 8 m/s (2m Above Ground)

Altitude Range
5 to 500cm

Operating Environment
Brightly lit (lux > 15) patterned surfaces

Operating Range
0 to 250 cm

DJI GO APP

Mobile Device System Requirements
iOS 8.0 or Later, Android 4.1.2 or Later

Supported Mobile Devices
Compatible with iPhone 5s, iPhone 6, iPhone 6 Plus, iPad Air, iPad Air Wi-Fi + Cellular, iPad mini 2, iPad mini 2 Wi-Fi + Cellular, iPad Air 2, iPad Air 2 Wi-Fi + Cellular, iPad mini 3, and iPad mini 3 Wi-Fi + Cellular. This app is optimized for iPhone 5s, iPhone 6, and iPhone 6 Plus.
Compatible with Samsung tabs 705c, Samsung S6, Samsung S5, Samsung NOTE4, Samsung NOTE3, Google Nexus 9, Google Nexus 7 II, Ascend Mate7, Nubia Z7 mini, SONY Z3 EXPERIA, MI 3, MI PAD, Smartisan T1
Support for additional Android devices available as testing and development continues.

Package Contents
1 x Aircraft Body
1 x Remote Controller
1 x Camera with Gimbal
4 x Propellers (Pair)
1 x Intelligent Flight Battery (TB47)
1 x Battery Charger
1 x SD Card (16GB)
1 x ND Filter
Manuals
1 x Power Cable
2 x Micro-USB Cables
1 x Remoted Controller Charging Cable
1 x Harness
1 x Camera with Gimbal Box
1 x Carrying Case

Item Dimension (L"xW"xH")
23 X 21 x 11

Weight
32.00 lb

Warranty Information
1st Year Warranty Service
