DJI Phantom 4 Pro+ Quadcopter Drone - Makerwiz

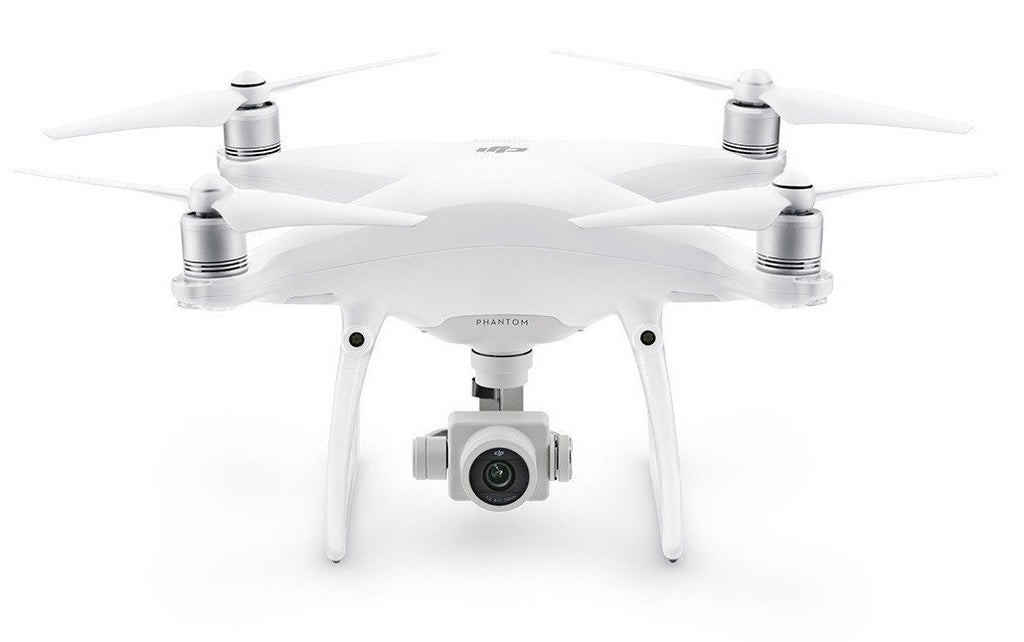

DJI Phantom 4 Pro+ Quadcopter Drone

$2,519.00 $2,549.00

Overview

An uprated camera is equipped with a 1-inch 20-megapixel sensor capable of shooting 4K/60fps video and Burst Mode stills at 14 fps. The adoption of titanium alloy and magnesium alloy construction increases the rigidity of the airframe and reduces weight, making the Phantom 4 Pro similar in weight to the Phantom 4. The FlightAutonomy system adds dual rear vision sensors and infrared sensing systems for a total of 5-direction of obstacle sensing and 4-direction of obstacle avoidance.

Camera with 1-inch 20MP Sensor
The onboard camera has been redesigned to use a 1-inch 20-megapixel CMOS sensor. A custom engineered lens made up of eight elements is arranged in seven groups, it is the first DJI camera to use a mechanical shutter, eliminating rolling shutter distortion which can occur when taking images of fast moving subjects or when flying at high speed. In effect, it is as powerful as many traditional ground cameras. More powerful video processing supports H.264 4K videos at 60fps or H.265 4K at 30fps, both with a 100Mbps bitrate. Advanced sensors and processors ensure everything is captured with more image detail and the image data needed for advanced post-production.

5-Direction of Obstacle Sensing
FlightAutonomy is expanded with an additional set of high-resolution stereo vision sensors placed at the rear in addition to the pair placed at the front as well as infrared sensing systems placed on the left and right sides. This network creates a total of 5-direction of obstacle sensing and 4-direction of obstacle avoidance, protecting the Phantom 4 Pro from more obstacles and giving filmmakers the confidence to capture more complex images.

Technical Specifications

Aircraft
Max Ascent Speed: S-mode: 6 m/s, P-mode: 5 m/s
Max Descent Speed: S-mode: 4 m/s, P-mode: 3 m/s
Max Speed: 45 mph (72 kph) (S-mode) , 36 mph (58 kph) (A-mode) , 31 mph (50 kph) (P-mode)
Max Tilt Angle: 42^o (S-mode), 35^o (A-mode), 25^o (P-mode)
Max Angular Speed: 250^o/s (S-mode) , 150^o/s (A-mode)
Max Service Ceiling Above Sea Level: 19685 ft (6000 m)
Max Flight Time: Approx. 30 minutes
Operating Temperature: 32^o to 104^oF ( 0^o to 40^oC)
Satellite Positioning Systems: GPS/GLONASS
GPS Hover Accuracy Range:
Vertical: +/-0.1 m (With Vision Positioning), +/-0.5 m (With GPS Positioning)
Horizontal: +/-0.3 m (With Vision Positioning), +/-1.5 m (With GPS Positioning)

Gimbal
Stabilization: 3-axis (pitch, roll, yaw)
Controllable Range: Pitch: -90^o to +30^o
Max Controllable Angular Speed: Pitch: 90^o/s
Angular Control Accuracy: +/- 0.01^o

Infrared Sensing System
Obstacle Sensory Range: 0.6 - 23 ft (0.2 - 7 m)
FOV: 70^o (Horizontal), +/-10^o (Vertical)
Detection Frequency: 10 Hz
Operating Environment: Surface with diffuse reflection material, and reflectivity larger than 8% (such as wall, trees, humans, etc.)

Vision System
Velocity Range: less or equal 31 mph (50 kph) at 6.6 ft (2 m) above ground
Altitude Range: 0 - 33 ft (0 to 10 m)
Operating Range: 0 - 33 ft (0 to 10 m)
Obstacle Sensory Range: 2 - 98 ft (0.7 to 30 m)
FOV: 60^o (Horizontal), +/- 54^o (Vertical)
Detection Frequency: 10Hz
Operating Environment: Surfaces with clear patterns and adequate lighting (lager than 15 lux)

Remote Controller
Operating Frequency: 2.400 - 2.483 GHz and 5.725 - 5.825 GHz
Max Transmission Distance: 2.400 GHz - 2.483 GHz(Unobstruoted, free of interference)
FCC: 4.3mi (7km)
CE: 2.2mi (3.5km)
SRRC: 2.5mi (4 km)
5.725 GHz - 5.825 GHz(Unobstruoted, free of interference)
FCC: 4.3mi (7km)
CE: 1.2mi (2 km)
SRRC: 2.5mi (4 km)
Operating Temperature: 32^o to 104^oF (0^o to 40^oC)
Battery: 6000mAh LiPo 2S
Transmitter Power (EIRP): 2.400 GHz - 2.483 GHz
FCC: 26 dBm CE: 17 dBm, SRRC: 20 dBm
5.725 GHz - 5.825 GHz
FCC: 28 dBm CE: 14 dBm, SRRC: 20 dBm
Operating Voltage: 1.2 A at7.4 V
Video Output Port:
GL300E: HDMI
GL300F: USB

Mobile Device Holder
GL300E:Built-in display device (5.5 inch screen, 1920 x 1080, 1000 cd/m2, Android system, 4GB RAM+16GB ROM)
GL300F:Tablets and smart phones

Intelligent Flight Battery (PH4-5870mAh-15.2V)
Capacity: 5870 mAh
Voltage: 15.2 V
Battery Type: LiPo 4S
Energy: 89.2 Wh
Charging Temperature Range: 14^o to 104^oF (-10^o to 40^oC)
Max Charging Power: 100 W

Camera
Sensor: 1 inch CMOS, Effective pixels: 20M
Lens:
FOV (Field of View) 84^o, 8.8 mm / 24 mm (35 mm format equivalent),
f/2.8 - f/11.
auto focus at 1 m -
ISO Range:
Video: 100 - 3200 (Auto), 100 - 6400 (Manual)
Photo: 100 - 3200 (Auto), 100- 12800 (Manual)
Mechanical Shutter: 8 - 1/2000 s
Electronic Shutter: 8 - 1/8000 s
Max Image Size:
3:2 Aspect Ratio: 5472 x 3648
4:3 Aspect Ratio: 4864 x 3648
16:9 Aspect Ratio: 5472 x 3078
PIV Image Size:
- 4096 x 2160 (4096 x 2160 24/25/30/48/50p)
- 3840 x 2160 (3840 x 2160 24/25/30/48/50/60p)
- 2720 x 1530 (2720 x 1530 24/25/30/48/50/60p)
- 1920 x 1080 (1920 x 1080 24/25/30/48/50/60/120p)
- 1280 x 720 (1280 x 720 24/25/30/48/50/60/120p)
Still Photography Modes:
Single Shot
Burst Shooting: 3/5/7/10/14 frames
Auto Exposure Bracketing (AEB): 3/5 bracketed
frames at 0.7EV Bias
Interval: 2/3/5/7/10/15/30/60 s
Video Recording Modes:
H.265:
- C4K: 4096 x 2160 24/25/30p at 100Mbps
- 4K: 3840 x 2160 24/25/30p at 100Mbps
- 2.7K: 2720 x 1530 24/25/30p at 65Mbps
2720 x 1530 48/50/60p at 80Mbps
- FHD: 1920 x 1080 24/25/30p at 50Mbps
1920 x 1080 48/50/60p at 65Mbps
1920 x 1080 120p at 100Mbps
- HD: 1280 x 720 24/25/30p at 25Mbps
1280 x 720 48/50/60p at 35Mbps
1280 x 720 120p at 60Mbps
H.264:
- C4K: 4096 x 2160 24/25/30/48/50/60p at 100Mbps
- 4K: 3840 x 2160 24/25/30/48/50/60p at 100Mbps
- 2.7K: 2720 x 1530 24/25/30p at 80Mbps
2720 x 1530 48/50/60p at 100Mbps
- FHD: 1920 x 1080 24/25/30p at 60Mbps
1920 x 1080 48/50/60 at 80Mbps
1920 x 1080 120p at 100Mbps
- HD: 1280 x 720 24/25/30p at 30Mbps
1280 x 720 48/50/60p at 45Mbps
1280 x 720 120p at 80Mbps
Video Storage Bitrate: 100 Mbps
Supported File Systems: FAT32 (less or equal 32 GB), exFAT (larger than 32 GB)
Photo: JPEG, DNG (RAW), JPEG + DNG
<="" span="">

Charger
Voltage: 17.4 V
Rated Power: 100 W

Item Dimension (L inchxW inchxH inch)
13 x 9 x 16

Weight
12.00 lb

Warranty Information
1 Year
