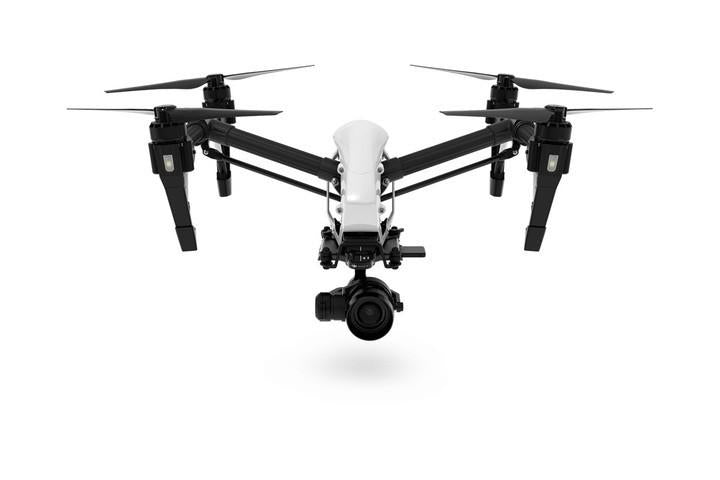

DJI Inspire 1 Quadcopter Drone - Raw 2xRemote Controllers, SSD and Lens

$8,099.00 $8,399.00

Overview

RECORD THE WORLD IN RAW
Get ready to experience the wonder of RAW. The Zenmuse X5R is the world’s first Micro Four Thirds aerial camera capable of recording lossless 4K videos in RAW. With a frame rate of up to 30fps and 1.7Gbps average bitrate (2.4Gbps maximum bitrate), the X5R empowers you to capture breathtaking professional-level footage every time. Packed with a powerful MFT sensor, the camera also takes 16MP images with stunning details, while the integrated 3-axis stabilization gimbal keeps the camera level. Finally, an aerial camera that’s truly fit for the professionals.

INCREASED DYNAMIC RANGE
With 12.8 stops of dynamic range, shadows and highlights in everything you capture is brought out in perfect clarity.

REDUCED COMPRESSION FOR AMAZING DETAILS
The Zenmuse X5R gives you lossless 4K RAW video and crystal clear 16 megapixel photos. No other dedicated aerial camera can capture the same level ofdetail in every frame and every shot, even at distances that defy the imagination.

REVOLUTIONARY SENSOR
Built inside the Zenmuse X5R is a powerful Micro Four Thirds sensor that’s absolutely revolutionary for an aerial camera. With a sensor eight times the size of that in the previous X3 camera included with the Inspire 1, this new MFT sensor enables high quality, high sensitivity image recording at an ISO range of 100-25600. With a sophisticated balance of high-resolving power, accurate gradation, and low noise, you are realizing your artistic and creative vision as never before.



Technical Specifications

AIRCRAFT:



Model
T600



Hovering Accuracy (GPS Mode)
Vertical: 0.5m
Horizontal: 2.5m



Max Angular Velocity
Pitch: 300 Degrees
Yaw: 150 Degrees



Max Tilt Angle
35 Degrees



Max Ascent Speed
5 m/s



Max Descent Speed
4 m/s



Max Speed
18 m/s (ATTI mode, no wind)



Max Service Ceiling Above Sea Level
4,500 m (Software altitude limit: 120 m above takeoff point)



Max Wind Speed Resistance
10 m/s



Max Flight Time
Approximately 15 Minutes



Motor Model
DJI 3510H



Propeller Model
DJI 1345T



Indoor Hovering
Enabled by Default



Operating Temperature Range
14o to 104o F (-10o to 40o C)



Diagonal Distance
559 mm



Gimbal And Camera:



Camera
Lens :
Replaceable lens
M43 mount supporting auto-focus
Supported Lens :
DJI MFT 15mm f/1.7 ASPH
Panasonic Lumix 15mm f/1.7
Olympus M. ED 12mm f/2.0
Olympus M.Zuiko 17mm f/1.8
Olympus M.Zuiko ED 14-42mm f/3.5-5.6 EZ(photography only)
Olympus M.Zuiko 25mm f1.8
Olympus M.Zuiko 45mm f1.8 (photography only)
Sensor : 4/3-inch CMOS sensor
Effective Pixels : 1600 M
Max Resolution : 4608x3456
ISO Range : 100-25600
Electronic Shutter Speed : 8 to 1/8000 s
Field Of View (FOV): 15mm/ f1.7: 72o
12mm/ f2.0 : 84o
Still Photography Modes :
Single shot
Burst shooting: 3/5/7 frames
Auto Exposure Bracketing: 3/5 bracketed frames at 0.7EV bias
Time-lapse (5/7/10/20/30 sec)
Video Resolution :
UHD: 4096x2160 (24/25p), 3840x2160 (25/30p)
FHD: 1920x1080 (24/25/30/48/50/60p)
Max Video Bitrate : 2.4Gbps (Average: 1.7 Gbps)
Supported File Systems :
FAT32 / exFAT
Photo: JPEG, DNG
Video: MP4, MOV (MPEG-4/AVC/H.264F), JPEG-Lossless(RAW)
Supported Storage Devices :
Class 10 or UHS-1 or above Micro SD cards with Max capacity of 64GB
SSD with Capacity of 512GB (ZENMUSE X5R)



Origin Lens
Name : DJI MFT 15mm f/1.7 ASPH
Focal Length : f : 15 mm (35 mm format equivalent 30 mm)
Aperture Type : 7 diaphragm blades/circular aperture diaphragm
Maximum Aperture : F1.7
Minimum Aperture : F16
Lens Construction : 9 elements in 7 groups (3 aspherical lenses)
In Focus Distance : 0.2 m to infinity (from the focus distance reference line)
Mount : Micro Four Thirds Mount
Angle Of View : 72o
Max. Diameter : Approx. 2.26 inches (57.5 mm)
Overall Length : Approx. 1.42 inches (36 mm)



Gimbal
Angular Vibration Range : +/-0.02o
Mount : Detachable
Controllable Range :
Pitch:-90o to +30o
Pan: +/- 320o
Max Controllable Speed:
Pitch:120o/s
Pan:180o/s



Remote Controller:



General
Name : C1
Operating Frequency :
922.7-927.7 MHz (Japan Only)
5.725-5.825 GHz
2.400-2.483 GHz
Max Transmitting Distance :
FCC Compliant: 3.1 miles (5 km) CE Compliant: 2.1 miles (3.5 km) (unobstructed, free of interference)
EIRP : 10 dBm at 900m MHz, 13 dBm at 5.8 GHz, 20 dBm at 2.4 GHz
Video Output Ports : USB, mini-HDMI
Power Supply : Built-in battery
Charging : DJI charger
Dual User Capability : Host-and-Slave connection
Mobile Device Holder : Tablet or Smart Phone
Max Mobile Device Width : 170mm
Output Power : 9 W
Operating Temperature : 14o to 104o F (-10o to 40o C)
Storage Temperature :
Less than 3 months: 68o
to 113oF (20o to 45o C)
More than 3 months: 72o to 82o F (22o to 28o C)
Charging Temperature : 41o to 104o F (5o to 40o C)
Battery : 6000 mAh 2S LiPo



Charger:



General
Model : A14-100P1A
Voltage : 26.3 V
Rated Power : 100 W



Battery (Standard):



General
Name : Intelligent Flight Battery
Model : TB47
Capacity : 4500 mAh
Voltage : 22.2 V
Battery Type : LiPo 6S High voltage battery
Energy : 99.9 Wh
Operating Temperature : 14o to 104o F (-10o to 40o C)
Storage Temperature :
Less than 3 months: 68o
to 113oF (20o to 45o C)
More than 3 months: 72o to 82o F (22o to 28o C)
Charging Temperature : 41o to 104o F (5o to 40o C)
Max Charging Power : 180W



Battery (Optional):



General
Name : Intelligent Flight Battery
Model : TB48
Capacity : 5700 mAh
Voltage : 22.2 V
Battery Type : LiPo 6S High voltage battery
Energy : 129.96 Wh
Operating Temperature : 32o to 104o F (0o to 40o C)
Storage Temperature :
Less than 3 months: 68o
to 113oF (20o to 45o C)
More than 3 months: 72o to 82o F (22o to 28o C)
Charging Temperature : 41o to 104o F (5o to 40o C)
Max Charging Power : 180W
Max Flight Time : Approx. 18 minutes



Vision Positioning:



General
Velocity Range : < 8 m/s at altitude 6.56 feet (2 m)
Altitude Range : 0.16 - 16.4 feet (5-500 cm)
Operating Environment : Surfaces with clear patterns and adequate lig
Operating Range : < 9.84 feet (300 cm)



DJI GO App :



General
Requirements : iOS 8.0 (or later) and Android 4.1.2 (or later)
Supported Mobile Devices : Compatible with iPhone 5s, iPhone 6, iPhone 6 Plus, iPad Air, iPad Air Wi-Fi + Cellular, iPad mini 2, iPad mini 2 Wi-Fi + Cellular, iPad Air 2, iPad Air 2 Wi-Fi + Cellular, iPad mini 3, and iPad mini 3 Wi-Fi + Cellular. This app is optimized for iPhone 5s, iPhone 6, and iPhone 6 Plus.
Compatible with Samsung tabs 705c, Samsung S6, Samsung S5, Samsung NOTE4, Samsung NOTE3, Google Nexus 9, Google Nexus 7 II, Ascend Mate7, Huawei P8 Max, Nubia Z7 mini, SONY Z3,EXPERIA, MI 3, MI PAD, Smartisan T1.



Item Dimension (L"xW"xH")
23 x 21 x 12

Weight
35.00 lb

Warranty Information
1st Year Warranty Service
